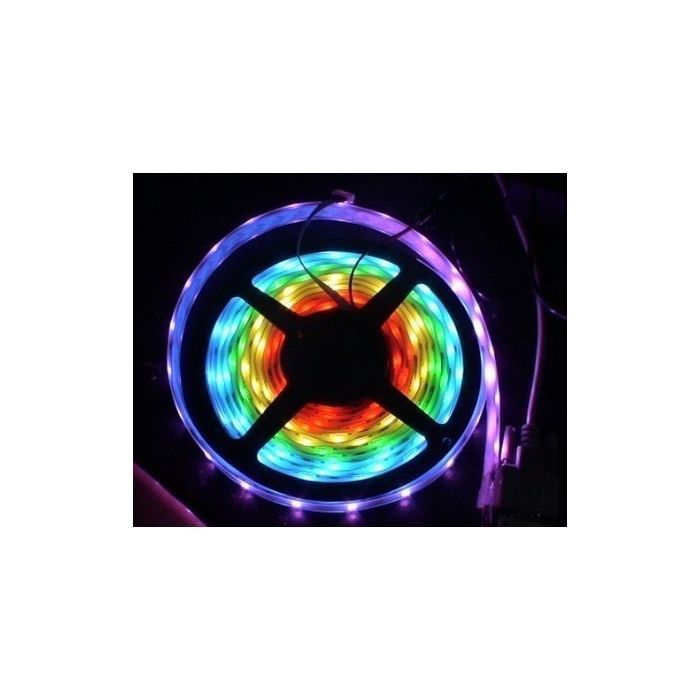

5M 48 LEDs/M LPD8806 Digital RGB LED Strip 8806 DC 5V Light Tape

A$92.15
In stock
SKU
5M 48 LEDs/M LPD8806 Digital RGB LED Strip 8806 DC 5V Light Tape

5M 48 LEDs/M LPD8806 Digital RGB LED Strip 8806 DC 5V Light Tape is very good choice for LED Lighting projects, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED products, Pls feel free to contact service@vozopca.com

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Vozopca.com

It is upgraded version of 32LEDs/meter lpd8806 led strip. There are 48 RGB LEDs per meter of this digital lpd8806

strip. Each LED can be controlled individually. The LPD8806 chip has built in 1.2 MHz high speed 7-bit PWM for each

channel, so that it can do 21-bit color per LED.  You can set the color of each LED's red, green and blue. The LEDs are

controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. Only 2 digital

output pins are required to send data down.

IC type: LPD8806

IC quantity: 24 ICs per meter,  5 meters length, total 120 ICs.

LED type: RGB SMD 5050 LED

LED quantity: 48 LEDs per meter, 5 meters length, total 240 LEDs.

Pixel quantity: 1 LED is 1 Pixel. 48 Pixel per meter, 5 meters length, total 240 Pixel.

Dimension: L5000 x W15 x T2.5 mm  The width of the Non-Wateproof Strip's PCB is 15MM; The width of the waterproof

strip's PCB is 17mm.

Working voltage: DC 5V

Viewing angle: 120 degrees

PCB color: Pls choose

Power consumption: approx 14 watts per meter, 5 meters length, total is approx 70W.

Grey level: 256 levels

Protection Rate:  Pls Choose,

IP30 Non-Waterproof with 3M Tape on the back,

IP65 Waterproof Dripping Glue with 3M Tape on the back,

IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back

Package Included:

1 Roll of 5 Meters (16.4ft) LPD8806 DC 5V Digital Addressable LED Strip 48LED/M 24ICs/M Programmable Light

You must use a 5V DC power supply to power these strips, do not use higher than 6V or you will destroy the entire strip.

2024_0_1_6_1

2024_0_1_6_2

2024_0_1_6_3

CE and RoHS approved
