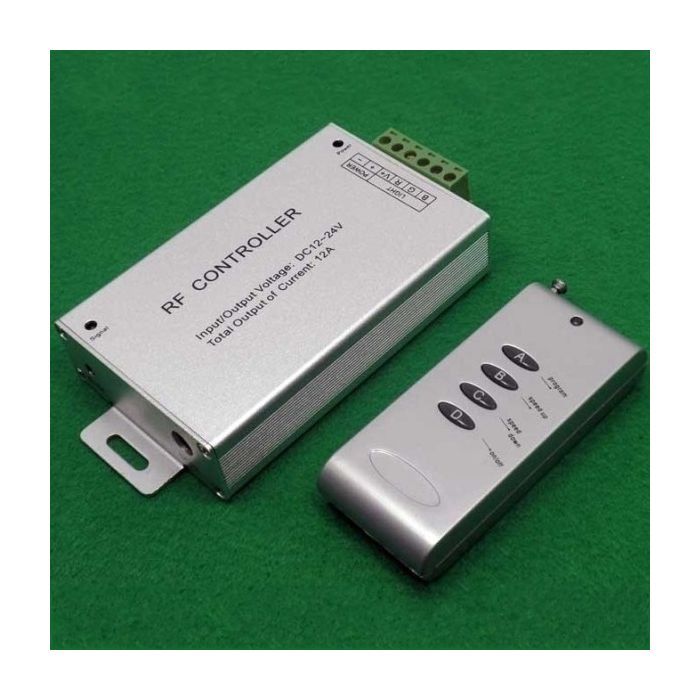

Common Anode 4 Keys Wireless Remote LED Controller DC 12V 24V

A$15.18
In stock
SKU
Common Anode 4 Keys Wireless Remote LED Controller DC 12V 24V

Common Anode 4 Keys Wireless Remote LED Controller DC 12V 24V  is very good choice for LED Lighting projects, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED products, Pls feel free to contact service@vozopca.com

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Vozopca.com

RF 4 keys LED controller adopts the advanced micro control unit, it used for controlling a variety of lamp whose source of light is LED.

For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,

it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers,

RF 4key LED controller can carry out jumpy changing, gradual changing, strobe flash and other effects of change.

Parameter

Working temperature: -20oC~60oC

Supply voltage: DC 12~24V

Output: 3 channels

Connecting mode: common anode

Transmission/Receiving frequency: 433.92 MHz

External dimension: L128*W64*H24mm

Packing size: L145*W95*H50mm

Net weight: 185g

Gross weight: 215g

Static power consumption<1 W

Output current: <4 A (each channel)

Output power: 12V<144W, 24V<288W

Direction for use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2. Adopt RF control, there are four buttons altogether, and every key-press function is as follows:

Program: pattern key, lighting color will change if you press one time;

Speed up: to speed up lighting color changing;

Speed down: to speed up lighting color changing;

On/Off: Power switch, you could turn on/off controller in any state.

3. Standard color changes as follows:

Items    Patterns                                Remarks

1            Static red

2            Static blue

3            Static yellow

4            Static green

5            Static purple

6            Static cyan

7            Static white

8            Three-color jumpy changing 2(B) and 3(C) keysare available

9            Seven-color jumpy changing 2(B) and 3(C) keysare available

10            Three-color gradual changing 2(B) and 3(C) keysare available

11            Seven-color gradual changing

Package Included:

1 Piece of Common Anode 4 Keys Wireless Remote LED Controller DC 12V 24V

cheap_LED_Controller_4_keys_radio_frenquency_wireless_rf_remote_rgb_led_controller

RF_4_key_Remote_Controller

RF_4_key_Remote_Controllers

CE and RoHS approved
