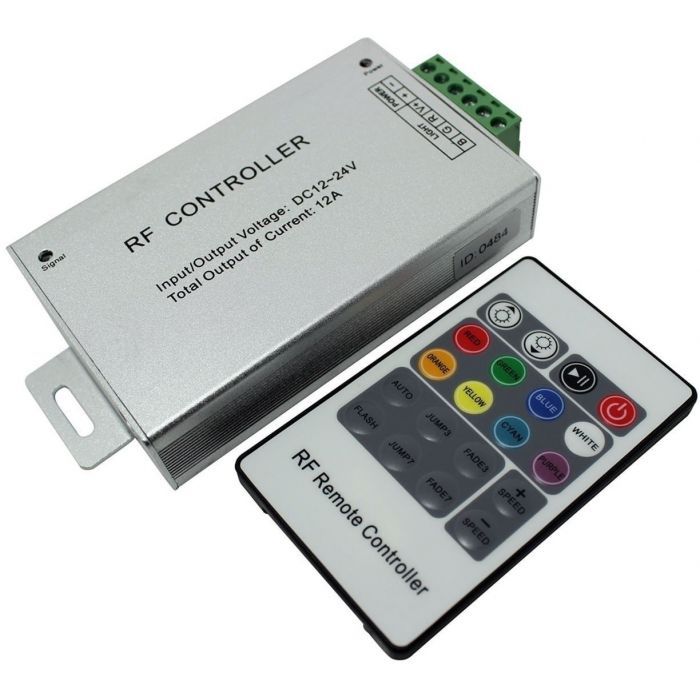

12A RF Remote RGB LED Controller 433MHz 12V 24V

A$20.33
In stock
SKU
12A RF Remote RGB LED Controller 433MHz 12V 24V

12A RF Remote RGB LED Controller 433MHz 12V 24V is very good choice for LED Lighting projects, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED products, Pls feel free to contact service@vozopca.com

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Vozopca.com

Working Temperature: -20~60 ℃

Working voltage: DC12V to 24V

Output: 3 channels

Transmission/receiving frequency: 433MHz

Remote distance: 10~15M

Controller dimension: L128 * W64 * H24 mm

Remote dimension: L85*W52*H7 MM

Packing size: L145 * W95 * H50mm

Net weight: 165g

Gross weight: 205g

Static power consumption: <1 W

Output current: <4A (each channel)

Output power:  12V: <144W, 24V: <288W

Package Included:

1 Piece of RGB LED Controller

1 Piece of RF Remote control

1 Piece of User Manual

20_keys_LED_Controller_aluminum_case_rf_remote_rgb_led_controller

NOTES:

1.) Only power with 12VDC Power Supply and connect to 12 Volt Light Strips or unit will be damaged.

Our Compact 50Watt and 24 Watt Power Supplies will plug into DC IN jack on left side of unit. Our Enclosed

Power Supplies can be direct wired to "+" and "-" terminals on removable Green connector on right side of unit.

2.) Wireless controller uses one 23A, 12V battery.

3.) Connect according to the above drawing and note that the Green Connectors can be unplugged from the unit.

4.) Red LED will come on when unit is receiving power, Green LED will flash when RF signal is received from handheld transmitter.

5.) UP and DOWN buttons will only work when unit is in one of the four color-changing (dynamic) modes.

6.) Each Controller has a handheld Remote matched to it and will only work with it's matched Remote. One Remote

cannot operate multiple Controllers.

7.) Controller can control a maximum of 30 meters of our Flexible RGB LED Strip. Over 30 meters, the Strips have to

connect with an amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 30 meters of additional LED Strips.

8.) Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.

CE and RoHS approved
