Please Pay Attention:
The Price is Only for Led Strip, Not Included Power Supply and Led Controller.
WS2812B Must UseDC5V Power SupplyandPixels Led Controllerto Control.
Every 0.5 Meter withSolder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.

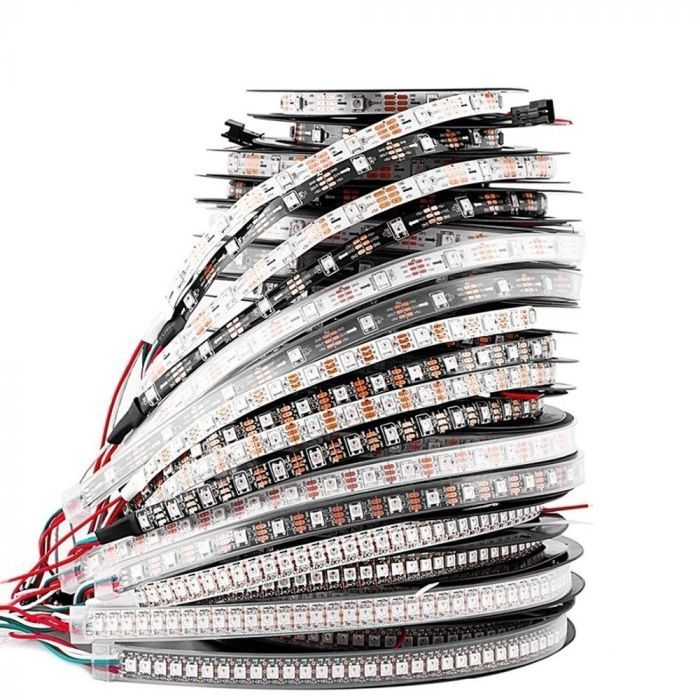

WS2812B Led strip Can Be Cut Between Each Led To Create Custom Lengths, Please Do Not Bend LED Strip Sharply.
The 3 Pin JST Connector of LED Strip Included: Red: VCC, Withe: GND, Green: DATA.
The LED Strip Has 3M Adhesive Tape On The Back of PCB (ExceptIp67 ). Please Make Sure Installation Surface Must
Be Smooth, Clean And Dry.
Longer LED Strip Runs, Please Power From 2 pin Power Wire of Both Ends To Reduce Voltage Drop.
How to Choose LED Power Supply and Pixels Controller?
First, Calculated The Whole Led Strip Lights Watts.
One Led Chip is About 0.3W, If You Buy 5m 60Leds/m ( Total LED Strip is 300 Leds ), So 0.3W*300=90W.
Then, Choose the Right Led Power Supply.
This Led Strip is Work with DC5V Power, So 90W / 5V=18A ( At Least 18A or more ).
Finally, Choose the Right Pixels Controller You Like.
WS2812B Led Strip is Controlled By Single Data Line Controller.
So you could choose them from our store, we have IR/RF Remote, Bluetooth, Wifi, Music APP and Computer controller
etc. ( If you can't recognize them, you could feel free to contact us, we will glad to help you )
Note:
The length: approx 5meters
Features:
Input Voltage:DC 5v.
Power:
30leds/m----9watt/meter.
60leds/m----18watt/meter.
LED Resource: WS2812B led (5050 SMD RGB LED with built-in improved version of ws2811 ic).
LED: Each LED is separately controlled.
IC Type: Improved version ws2812 IC(built inside the 5050 smd rgb led).
Of IC: (1 IC drives 1 led chip).
Pixels: 30/60/74/96/100/144/meter.
Grey Scale: 256.
Bits/color: 8-bits/color.
FPCB Width:
30leds/m----10mm.
60leds/m----10mm.
FPC Color: Black/White.
Protection Rate: Pls Choose,
IP30 Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Lighting Colors: Full color RGB, dream color changing.
Cuttable: Every LED is cuttable.
Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back.
(IP67 without 3M adhensive).Each strip with one free male connector for connector.
The different between theWS2812BandWS2812B-ECO.
LED Chip Material:
9pcs Pure Gold Line, Copper Bracket (WS2812B).
9pcs Admixture Gold Line, Brass Bracket (WS2812B-ECO).
LED IV Value Brightness:
Red: 400-700mcd, Green: 1000-1500mcd, Blue: 200-400mcd (WS2812B).
Red: 500-700mcd, Green: 1300-1800mcd, Blue: 300-500mcd (WS2812B-ECO).
Warranty Period of Led Strip:
36 Months (WS2812B), 18 Months (WS2812B-ECO).
Suggestions on Product Application:
Such as Park, Square, Hotel, Airport, Office Building, Shopping Mall, Coffee Bar, KTV, Supermarket, etc (WS2812B).
Usually applied to Parlour, Bedroom, TV light, Karaoke Television light, Computer light, DIY and Home decoration, etc (WS2812B-ECO).
Package Included:
1 Roll of Led Strip Light
CE and RoHS approved
