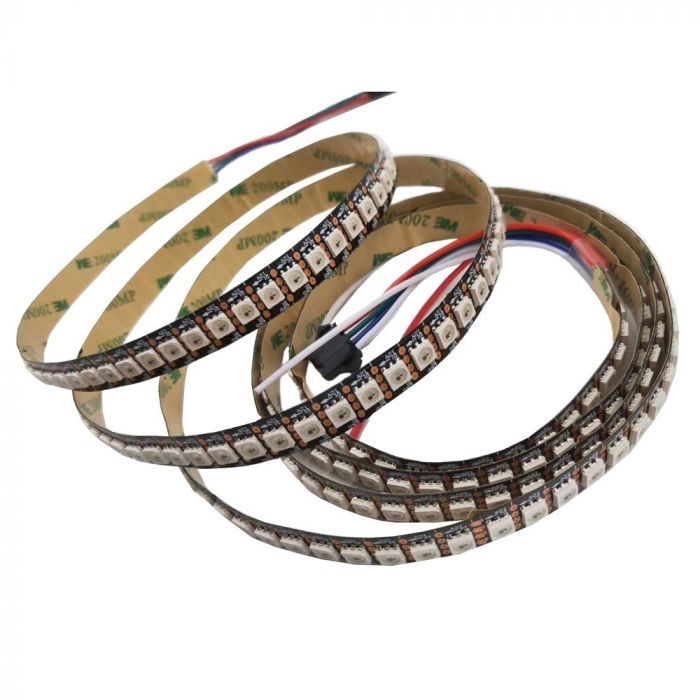

1M 144LEDs WS2815 IC LED Strip Individual Addressable 12V Smart Pixel Digital Light

A$30.17
In stock
SKU
1M 144LEDs WS2815 IC LED Strip Individual Addressable 12V Smart

1M 144LEDs WS2815 IC LED Strip Individual Addressable 12V Smart Pixel Digital Light is very good choice for LED Lighting projects, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED products, Pls feel free to contact service@vozopca.com

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Vozopca.com

Wide compatibility

Can be controlled by Arduino, Raspberry Pi, Fadecandy, K1000C, SP105E, SP107E, SP110E etc.

12V WS2812B LED Strip

WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned

on full white, 12V version has no voltage drop. You don't need to inject power as frequently as 5V version.

Individually addressable

Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation

you want. 256 brightness display and 24-bit color display.

Dual-signal wires

WS2815 LED strip is Similar like the version of 5V WS2813 LED strip, Designed with one data wire and one backup data wire.

Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.

Easy installation

Self-adhesive tape on back FOR IP30/IP65, it can be fixed on any dry and flat surface without any screws and clips. Each LED

can be cut off at cutting line.

There are 4-pin JST SM connectors and separated power/ground wires on both ends, which make it easy to hook up each other

and wire up for power.

Specifications

IC type :WS2815 IC

Gray level: 256

View angle: 120°

Input voltage: DC12V

Color: full color 24-bit

FPCB board color: Pls Choose Black Background or white Background

Power: 0.3W/LED  144 LEDs/m

Model: WS2815 strip 5050rgb chips

Storage Temperature:-30-+95 °C

Operating Temperature:-20 ~ +85°C

Led Qty: 144pcs RGB SMD 5050 per meter

The distance between two LEDs:144Leds/m -- 1.92mm

Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm

Waterproof level: Pls Choose Non- waterproof or IP65 waterproof or IP67 waterproof

Note

Power adapter and controller are not included!

It is forbidden to light up for a long time when the strip is in the spool.

Protection Rate:  Pls Choose,

IP30 Non-Waterproof with 3M Tape on the back,

IP65 Waterproof Dripping Glue with 3M Tape on the back,

IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back

Package Content:

1 Roll of 1 Meter (3.28Feet) WS2815 IC RGB 144LEDs Led Strip

CE and RoHS approved
