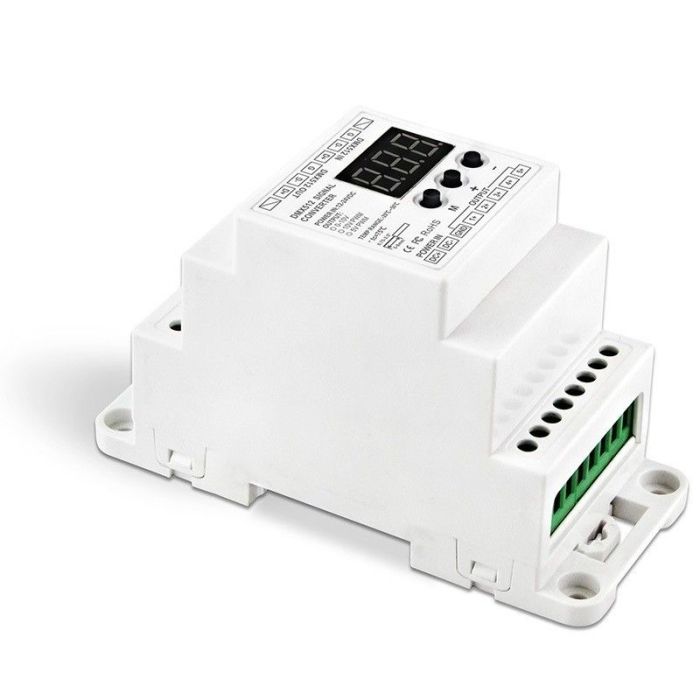

BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail DMX512/1990 Converter

A$31.65
In stock
SKU
BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail

BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail DMX512/1990 Converter is very good choice for LED Lighting projects, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED products, Pls feel free to contact service@vozopca.com

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Vozopca.com

Welcome to use the Din Rail DMX512 to 0-10V converter, which adopted advanced micro-computer

control technology to transfer DMX512/1990 signal to 0-10V signal or PWM 10V、5V signal. 1-5

output channels can be selected, and each channel can be controlled independently.

Specifications:

Model:  DMX512 Signal Converter(BC-835-010V-DIN)

Input voltage: DC12V-DC24V

Input Signal: DMX512/1990

Output Signal: 5CH 0-10V signal

Max output power :5×20mA

DMX512 socket : Terminal Block

Dimension:  L111×W46×H66(mm)

Weight (G.W) : 110g



Model:DMX512 Signal Converter(BC-835-PWM5V-DIN)

Input voltage:DC12V-DC24V

Input Signal:DMX512/1990

Output Signal:5CH PWM 5V signal

Max output power:5×40mA

DMX512 socket:Terminal Block

Dimension:L111×W46×H66(mm)

Weight (G.W) : 110g




Model:DMX512 Signal Converter(BC-835-PWM10V-DIN)

Input voltage:DC12V-DC24V

Input Signal:DMX512/1990

Output Signal:5CH PWM 10V signal

Max output power:5×40mA

DMX512 socket:Terminal Block

Dimension:L111×W46×H66(mm)

 Weight (G.W):110g

Package Content:

1 Piece of BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail DMX512/1990 Converter

1 Piece of User's manual









CE and RoHS approved
