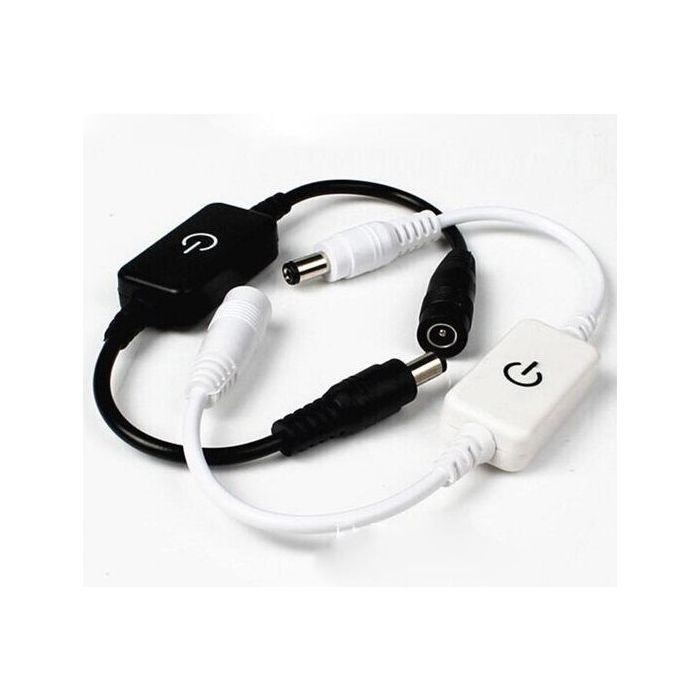

niversal single color LED dimmer can turn ON/OFF and dim any 12VDC or 24VDC LED products from 10 to 100 percent using
Pulse Width Modulation (PWM) circuit. Touch sensitive control for full intensity adjustment range and ON/OFF controls.
Maximum Load is 3 Amps, has Male and Female 5.5mm barrel power connector for connecting in-line with our CPS series
Power Supplies.
Directions: touch finger pad for less than 5 seconds for ON/OFF function - hold for more than 5 seconds for dimming function.
Specifications:
Working Voltage: DC 12~24V Product size: (L)30.8x(W)8.7x(H)38mm
Max load current: 3 Amps Net Weight: 23g
Output 1 channel Working temperature: -10°C ~ +50°C
Static power consumption: < 1 Watt
Output Power: 36W @ 12V / 72W @ 24V
Function: Dim LED product from 0~100% using PWM with CPS series Power Supplies
Safety Information:
1. Supply voltage of this product is 12~24 Volts DC, do not exceed 24VDC
2. Shorting output wires my cause damage to dimmer
3. Always observe proper polarity when connecting power and load
4. For indoor use only ? this product is not waterproof or weatherproof
Package Included:
1 Piece of New iTouch Led Dimmer Switch for LED Single Color Light
1 Piece of User's Manual
CE and RoHS approved
